The exact types and amounts of botanticals used in gins are usually a
closely guarded secret. However, by law, gin must contain juniper berries.
Juniper berries & coriander seed typically constitute 90% of the total botanicals used.
Typical botanicals used include :
juniper berries,
coriander seed,
angelica root,
orris root,
sweet orange peel, and
licorice powder (root)
Commercially they are sometimes made by charging a pot still with a whisky base at 63%.
The botanicals are packed in clean cotton bags, and immersed in the liquid. The still
is rapidly bought up to temperature, then the heat input reduced. A small fraction is
first collected at 83C, then the gin portion, which forms the central fraction, is collected
from 83C up to 86-89C. The rest is then collected as tails. In determining the cut to
tails, a smelling test of the distillate is the deciding arbiter, while the overhead
vapour temperature serves only as a guide.
Wal writes ...

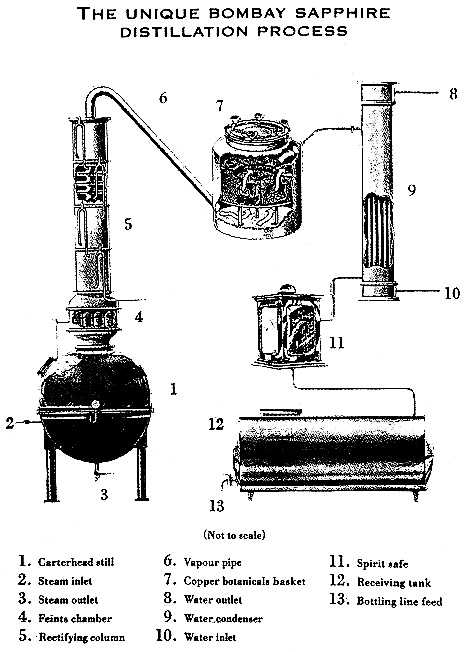

re .. the Carterhead Still used to produce Bombay
Sapphire Gin. I thought the botanicals were in the actual still, which is a
type of reflux column, but this is not so. The botanicals are held in a
separate 'basket' which resembles a moonshine 'doubler'
Diagram from 'Classic Spirits of the World', Gordon Brown, 1995.
John V has built a small basket that sits in the top of his distillation
column to hold the berries and herbs ...
herewith my simple attempt at a 'gin head'. My desire has been to produce
gin in the classic manner, i.e. by letting the alcohol vapour pass
through/over a package of herbs & spices suspended in the column. I was
not interested in essences or such. Happily, it works.
Three aspects made it possible.
1) My reflux column is of the 2" diam.
variety. Thus there is ample space for a packet of herbs & spices.
2) the column is packed with large s.s.scrubbers. By removing the top one, I can
simply set my herb packet in its place.
3) The head of the column is not
soldered onto the column, and is easily removed, exposing the top of the
column.
The packet itself is made out of a square of plastic (?) window screen
(8"x8"). I first tested its resistance to ethanol, by boiling it in
ethanol. Whatever it is made of, it is indestructable. I simply rolled it
into a tube about 1 1/2"diam, and folded over and stapled the bottom end.
Also a couple of staples along the seam and at the top.
Spices and herbs are measured out, and poured into the packet. Drop the
whole works into the top of the reflux column, and replace the column head.
The pouch is located just below the T
formed by the column and the short horizontal lyne arm. In the pictures
below, the botanicals probably sit at the level of the white Teflon
tape.
Gin botanicals for 20L turbo-sugar wash/ Reflux column
juniper berry - flat Tbsp
coriander - flat tsp
cloves - ½ dozen
anise - ½ tsp
fennell - flat tsp
cardamom - ½ tsp
lemon - 1" rind
lime - 1" rind
cassia / cinnamon stick - 3/4" fragment
Method: I put the whole amount into the small pouch, which seems to be
enough for one distillation run of approx. 20L of Turbo-sugarwash. This
seems a very small amount, but it gives me enough taste. Be cautious with
adding anymore - the juniper berries can be VERY dominant. Also, keep the
cassia/cinnamon to a min. It can really give a burning sensation. What I
have here is about right for me.
The lemon and lime rinds are actually v. thin peels, not including the
white fibrous stuff on their underside.
Anis and fennel are approximately the same in taste.
I did not crush any of these - simply put them into the pouch whole.
When wiith Turbo-sugar wash, I put the botanicals into the column with the
first (and only) distillation. As the ethanol is coming off at 94-96%abv I
see no reason to run it through separately to get the botanicals in.
You can either do it this method yourself, or it is easier just to make a simple
gin essence, and add this to some 40% neutral alcohol.
I use a small essence still to make gin essence in. It is a 1L glass coffee pot, with a large
cork in the top, through which a condensor sits. Total cost < NZ$20. I gently crush up approx
50g of juniper berries, and a couple of coriander and fennel seeds, and soak these
in alcohol of 75-95% strength, for a week or so. Sometimes add a wee strip of orange
peel too. I put this into the potstill, and add a little water too. I distill off
the essence, up to about 90C, or when the flavours stop. This essence is then
added to neutral vodka at 40% - each litre only needing around 10 mL of essence to
get the right flavour.
If your gin goes cloudy, it means that you have too much oil present for the %
alcohol - either up the % alcohol until it dissolves again, use less oil, or
just drink it cloudy.
Jack writes ...
All the empirical data you need in regards to gin distilling has already been
researched for you- by the gin distilleries themselves. Soaking the
botanicals in the mash, and then running them through the still along with
the mash (more likely an already distilled spirit) produces what is
considered the heaviest gin flavors (I couldn't find a commercial distillert
that does this). Some distilleries soak the botanicals for 24 to 48 hours in
the base spirit, filter them out, then redistill (Gordon's and Plymouth soak
for less than 24 hours, Beefeater for a full 24 hours) producing a slightly
lighter style of gin. The lightest style of all is produced by a "gin head"
still- the botanicals are suspended in a basket above the spirit in the still
(This is how Bombay makes their gin). Each company argues that their method
is best- Bombay says their method (gin-head still) results in a more delicate
gin, Beefeater says that a long steeping time gives a gentler extraction, but
builds complexity, and fixes the aroma in the spirit more solidly. Plymouth
and Gordon's say a long steep can allow harsher flavors to come out, and
allow certain flavors to dominate. The first bottle of gin extract that I
made was too heavy in citrus for my taste- I gave it to a fan of Bombay
Sapphire. My second gin concentrate consisted only of juniper - it turns out
I like Schlichte brand Steinhaeger dry gin- very aromatic, but simple. You
could always make a juniper extract, along with an extract of every other
herb you can find, and add them 1/4 teaspoon at a time to a bottle of vodka,
until you get what you want.
Mikrobios describes his technique ...
Intinct
60 g dried juniper berries,
1 g cardamom seeds,
1 g coriander seeds,
0.5 g dried cinnamon, and
0.5g dried rosemary
in 200mLs high proof distillate (95%) for 3 weeks in a sealed jar.
The mixture becomes a murky brown. Don't worry if it smells unpleasant and medicinal.
Then add 100 mLs filtered water, remove the cinnamon and either pot-still without reflux, or, as I do,
use a simple 'internal alembic' made from kitchen utensils:
This method is very well known, and may be the best for essence distillations where one is starting with good spirit
and where methanol/fusels are not a problem. I place two vessels in the pan: the collecting vessel is thus
insulated against the heat of the boiling tincture and at the same time is kept below its own boiling point
by the drops of distillate. When the cooling water is hand-warm (trial and error) I turn the gas off.
About 100mLs of clear distillate is obtained; I bring this to 150 mL with cold filtered water. It immediately becomes
opalescent. About 4 mLs of this will flavour a litre of 40% spirit to make a clear and flavourful gin. Calibrating a batch is
a delightful way to spend an evening.
As a alternative method, UPS writes ...
You can order juniper berries at www.penzeys.com It's an American company
out of Wisconsin. I have ordered from them. They have good products, prices
and fast service.
I use juniper berries by simmering them in 50% vodka for
ten minutes (with the lid on), then letting it cool overnight on it's own.
The next day I filter this mess through a couple of coffee filters to get a
homemade (and better quality) gin essence. I use about 35 grams of juniper
berries (crushed) and 350ml of vodka - 5ml (one teaspoon) will turn a bottle
of vodka into a light flavored gin. 10ml make a more traditional, strong
flavored gin. You can add other spices like cardamom, coriander, and lemon
peel (about one gram of each) for a more complex flavor in your gin. Using
10ml makes a straw yellow colored drink.
Regarding other sources of Juniper berriers, Dick advises ..
I hope that was a mistake when you said you haven't got a yew
bush for juniper berries. If what you are calling yew is the taxus baccata then
the seeds in the berries (bright red with an obvious seed visible at the end -
like a cocktail olive !!) are VERY VERY poisonous and should not be eaten
under any circumstances (unless you're a bird, in which case the seeds go
right through & out the other end !!)
The juniper you want is juniperus communis, the berries are green at
first but if left on the bush for a year turn blue/black & have that wonderful
juniper smell when crushed. Juniper is fairly slow growing so you're probably
better off going to a health food shop, herbalist or good cook shop for
supplies - the berries are great for use in cooking & pickling. However if
you're ever in Scotland talk to me 'cos I know where they grow wild !!
Another source might be aromatherapy juniper oil, it'll be very
concentrated but it's supposed to be a pure extract. Don't know if anyone
else in the group has had experience of using juniper in this form.
Plant that grows in the upper mountain areas of Catalonia, normally between 500 and 1,600 m.
Although it can develop into a small tree of up to 7 m, it is usually found in bush form, less than 2 m in height.
Its more characteristic features are its needle-like leaves, with a white band on the upper face, encircling the stem
in groups of three. The fruit matures in the autumn after a two-year period on the plant. This fruit is pea-sized, round,
purplish-blue in colour and surrounded by an aromatic pulp.
Matt writes ...
In Bob Emmons' _The Book of Gin & Vodkas_ he describes gin manufacture to some extent,
even delineating the "cold compunding" method into three sub categories. Cold compounding is using
neutral spirit and basically soaking the botanicals in it, which is what I see on the amateur sites we frequent.
The other methods are of course distillation of botanicals into oils and then their addition to neutral
spirit and traditional pot distilling of spirit through botanicals via the gin head.
He says the basic compounding includes crushing the botanicals used, a week of steeping in neutral
spirit, and a week of resting. Followed by filtering, dilution, and bottling. It is clear that the filtering is for
particulate matter since neutral spirit is used up front.
re: botanical amounts, he gives a complete listing of
the common to the more obscure (rosemary, savory, etc.) botanicals used.
Here's his section on a basic gin botanical ratio:
Here's a simple recipe utilized for making a basic gin. To 2,000 liters of 100 proof alcohol,
add 45.4 kg of juniper berries, 22.7 kg of coriander seeds, 4.5 kg of cinnamon bark,
4.5 kg of angelica root, 0.45 kg of lemon peel, and 0.45 kg of cardamom.
The end result will be immediately recognizable as gin.
Well that's good news ;-) He doesn't mention the method used for the above "recipe"
but it would appear to be a cold compounding method.
notes on botanicals: North American cinnamon of commerce is actually the bark of
the cassia tree. True cinnamon is not as easily obtained but it would seem his basic gin is
using the cassia bark. Cardamom in this case would be cardamom seeds themselves and
not the whole pods. Remember to remove as much pith (the white part) from the lemon peel; it is bitter.
The Household Cyclopedia (1881) gives a Dutch and an English recipe:
"To Prepare Gin as in Holland" using a proof spirit distilled from a
rye, barley malt mash. Scaled down and converted to metric it
consists of macerating 17.5g of juniper berries and 0.75ml (15drops)
of juniper oil in 1 litre of proof spirit and redistilling.
"English Genever" is made by macerating 35g of juniper berries in 1
litre of proof spirit with added water and redistilling.
Some distillers have the alcohol vapor pass through the botanicals
(in a gin head), others macerate together and redistill while others
distill various botanicals separately, and then blend, because
different oils have different boiling points. I suspect some modern
gins add essential oils to a neutral spirit instead of redistilling
with botanicals.
Dutch gin (genever) is based on a heavier spirit made from a mash of
wheat, rye and malted barley distilled in pot stills.It is often
stated wrongly that genever uses only juniper. Other botanicals are
used. It's the method used which gives genever its distinctive style.
Bols, passes the vapor in a 4th distillation over the juniper berries.
Triple distillation is common, and juniper is normally introduced in
the second distillation, with the other botanicals being added to the
3rd (or sometimes 4th) distillation. Notaris redistills with juniper,
while a 3rd blending component is distilled with other botanicals
separately. The end result of combining a richer spirit and a higher
percentage of juniper is a spirit which is more powerfully textured
than London gin.
Old genevers were straw-colored and pungently sweet. Early English
gin was also a juniper-laden drink flavored with glycerine and sugar
syrup (Old Tom). Plymouth gin claims to be the first distillery to
produce a dry, crystal-clear gin in the late 18th century. Gin was a
perfect medium for bitters (to prevent stomach problems), lime juice
(to prevent scurvy), and Schweppe's Tonic Water cotaining quinine (to
prevent malaria).
There are 2 main ways to make gin: redistilling a neutral spirit
which has had botanicals added to it (Distilled Gin); or adding
essential oils (cold compounding). Distilled Gin (on label) is
superior.
The pot stills used have high necks for more reflux than the usual
whisky stills.
All distilleries have their secret rcipe of botanicals and how they
put them in varies. Some put the botanicals in for only a short time
before redistilling, others steep them for 24 hours before
distilling, others pass vapor through a basket holding the botanicals.
Not all botanical aromas appear at the same time. After a quick
foreshots run, the volatile citrus notes appear, then come juniper
and coriander, then the roots such as orris, angelica and liquorice.
The length of the run is important. The alcohol concentration of the
final product is also important as citric notes are the most
volatile, and should be greater than 40%abv. Some duty-free gins are
50%abv.
All brands use juniper and coriander, but Gordons uses ginger, cassia
oil and nutmeg. Beefeater uses bitter orange peel as well as angelica
root and seed. Plymouth's 7 botanicals include sweet orange peel and
cardamon. Sapphire uses the now rarely seen cubeb berries (India) and
grains of paradise (Ghana).
For convenience I have scaled down and rounded the quantities for the
recipes for Dutch Geneva, Cordial gin and dry London Gins
from 'Muspratt Chemistry'. I have assumed that the
botanicals will be macerated in 1 litre of 50%abv and then
redistilled. 42%abv is the original strength of Plymouth Gin. I have
also doubled the quantity for bitter almonds as the original used
pressed bitter almond cake and almonds contain about 50% oil. For the
cordial gins, double the quantity of botanicals and then dilute to 22%
abv. I have omitted the 'West Country Gin' as it contains only 2g of
juniper/litre and a total of about 35g/litre of botanicals seems to
be an optimal quantity.
Recipe 1 (from 'The Book of Gin & Vodkas', Bob Emmons)
BASIC GIN
juniper 22.5g
coriander 11.5g
cassia 2.5g
angelica root 2.5g
lemon peel 0.25g
cardamon 0.25g
Recipe 10 (from 'The Household Encyclopedia')
ENGLISH GENEVA
juniper 35g
The Dutch figure prominently in the history of distilling. With their
business acumen, they were quick to make a guilder when the
opportunity arose.
The first recorded distillation of gin (eau de vie de genievre)is in
1572 by Franciscus Sylvius a physic of Leiden, and it was meant as a
health tonic based on juniper berries. Lucas Bols, the father of
commercial gin production, built his first distillery in 1575 near
Amsterdam. The first recorded commercial liqueur was Lucas Bol's
Kummel. It was meant as an aid for digestion i.e. as a digestive.
It's based on caraway seeds which are believed to aid digestion and
prevent flatulence.
The use of caraway flavored spirits are still
common from Holland to Latvia. Caraway has a yield of essential oils
from about 3-7%, therefore you would need to macerate about 100 grams
of crushed seeds in 40%abv and then to redistill to get a caraway
flavored spirit. This would have about a teaspoon (5ml or 100 drops)
of caraway essential oil. Using a commercial essential oil is another
alternative. Here is a basic recipe for those with a flatulence
problem:
Kummel
750ml (3 metric cups) of caraway flavored alcohol 40%vol (5ml
essential oil/litre i.e. redistill 100g crushed seeds in 1L 40%abv)
1 cup sugar
1/2 cup water
Make a simple syrup and add to the alcohol
You could also make a caraway flavored vodka by maceration:
1 litre vodka 40%abv
60g (2oz) lightly crushed caraway seeds (4tbsp)
60g (2oz) sugar (1/2 cup), or to taste.
Macerate for 10 days and strain.
Pacharan (Patxaran) is a Spanish Basque specialty made by macerating
sloe berries (blackthorn, prunus spinosa)in a dry anise flavored
alcohol with other herbs and spices.Sloe Gin is made by macerating sloe berries in gin. Here are two
recipes from "Wine Making & Home Brewing" S. Beedell (1970):
Sloe Gin 1
1 gallon (4.5L) gin
3 and 1/2 (1.6 kg) lb white sugar
3 oz (85 g) bitter almonds
3 quarts (3L) sloes
Put all the ingredients into a 2 gallon (9L) jar and shake 2-3 times
a week. Strain and bottle at the end of 2 months.
Sloe Gin 2
Put 3 pints (1.7L) of sloes in a gallon jar (4.5L) with
1 oz (30g) of sweet almonds and
1 and 1/2 lb (700g) of white sugar.
Pour in 2 quarts (2l) of gin and cover.
Shake the jar every third day for 3 months. Strain,
bottle and seal. The gin improves with keeping.
I have a Ukrainian recipe .. for a 'Ternivka'
or Sloe Vodka. It relies
on wild yeasts to weakly ferment the sloes.
Ternivka (Sloe Vodka)
Fill a large jar with ripe sloe (blackthorn) berries that have been
pricked in several places. Sprinkle with sugar. Cover neck and let it
stand in the sun for 6 weeks. When fermentation has ceased add to
every 10 kg (20 lb) of berries 500 ml (1 pt) of vodka. Let it stand
for several months. Strain. Add more vodka (quantity not given, but
going by sloe gin recipe it could be up to 10 litres or 20 pts).
The English make a Plum
Gin from Damson plums, which are related to the French Mirabelle
plum, from which the well-known eau-de-vie de Mirabelle is made.
Here are two recipes for Damson Gin from "Winemaking and Home
Brewing", S. Beedell (1970).
Damson Gin (Fortified) 1
1 lb (500 g) damsons
1 and 1/2 pts (850 ml) gin
3/4 lb (350 g) sugar
Mix all together, and shake well two or three times a day till the
sugar is dissolved. Store for at least a year before using.
Damson Gin (Fortified) 2
Damsons
Cloves
Essence of almonds
Unsweetened gin
Sugar candy
Wipe the damsons, removing stalks, and prick each one in several
places with a pin. Prepare some dry quart (litre) bottles, and half
fill them with the fruit. To each bottle add 1 clove, 2 oz (60 g) of
crushed sugar candy and a few drops of essence of almonds. Then fill
up with unsweetened gin. Cork securely, and keep in a warmish place
for 3 months, shaking occasionally. Strain the gin until it is clear
then rebottle and cork well, and store until wanted.
Pacharan is a Spanish liqueur.
1 litre dry aniseed flavored alcohol (e.g. arak,raki,ouzo or you
could add 4tsp aniseed to 1litre of vodka)
250 g sloe berries (blackthorn, prunus spinosa)
2 tbsp sugar
stick of cinnamon
6 coffee beans
camomile flowers (say 1 tsp)
dry orange peel
Macerate the sloe berries in the alcohol until it becomes a
characteristic intense red, then add sugar, coffee beans,camomile
flowers,cinnamon, orange peel. Macerate for at least 30 days. Strain.
Variations of the above exist. The use of sloe beries is reminiscent of English sloe gin.
Baker quotes from "The Alcohol Textbook" by
Jacques,Lyons & Kelsall :
Production of gin
The BATF definition of gin is a product obtained by original distillation from mash,
or by redistillation of distilled spirits, or by mixing neutral spirits with or over
juniper berries and other aromatics, or with or over other extracts derived from
infusions, percolations, or maceration of such materials, and includes mixtures of
gin and neutral spirits. It shall derive its main characteristic flavor from juniper
berries and be bottled at not less that 80 proof (40 %). Gin produced exclusively
by original distillation or redistillation may be further designated as distilled.
The regulation also states that dry gin (London dry gin), Geneva gin (Holland’s gin)
and Old Tom gin (Tom gin) are types of gin known under such designations.
This
regulation means that gin may be produced by 1) distilling spirit with juniper
berries and other botanicals, or 2) mixing spirit with a distilled gin concentrate,
or 3) mixing spirit with a blend of essences of juniper and other flavorings.
The spirit used in gin production is usually neutral, but in the production of
Geneva gin, which is popular in the Netherlands and Quebec, it is a heavily flavored
distillate referred to as malt wine.
Distilled gin is normally produced in batch
operations using pot stills. The pot still is usually filled with neutral spirit
diluted to 45-60 %, and then the juniper berries and other botanicals are added.
The berries and botanicals may be added directly to the spirit either in loose
form or contained in a cotton sack. Alternatively, the mixed botanicals may be
suspended above the liquid surface either in a cotton sack or in a wire mesh rack.
In the gin distilling process the pot still is heated by steam indirectly through
a calandria in the bottom of the pot.
The distillate coming over in the first few
minutes of flow is normally discarded as heads for reprocessing. The main bulk of
the distillate is then taken as product, and the final portion distilling below a
predetermined proof (of about 45 oGL) is discarded as tails for reprocessing. The
pot still product is then sent to the bottling department for dilution and bottling.
There is usually no storage or blending of different gin batches.
In the preparation
of gin concentrate the distillation process is much the same as for distilled gin,
but a much greater quantity of botanicals is added in the pot still. The gin
concentrate is then simply blended with neutral spirit prior to bottling. Gin
essences are prepared by blending essential oils and other extracts derived
from juniper berries and botanicals. With the introduction of highly concentrated
gin essences, it is possible to use as little as 0.01% by volume of the essence
in a blend with neutral spirit.
Some internationally known brands of gin are produced
by all three methods (i.e. distilling, concentrate blending, and essence blending)
indifferent countries without appreciable variance in taste and odor when normal
quality control procedures are used.
The quality and type of juniper berries and
the mix of other botanicals largely determines the nature of the end product. For
example, the flavor of London dry gin is strongly influenced by large amounts of
coriander seeds in the botanical mix. Simpson (1966; 1977) and Clutton(1979) have
listed several botanicals commonly used in gin production (Table 2). Another
frequently used botanical is the chamomile flower (Chamaemelum nobile).
Table 2. Botanicals used in production of gin.1
Common name Botanical name
Juniper berries Juniperis communis
Coriander seed Coriandrum sativum
Liquorice root Glycyrrhiza spp.
Fennel seed Foeniculum vulgare
Cubeb berries Piper cubeb
Cinnamon bark Cinnamonum zeylanicum
Nutmeg Myristica fragrans
Aniseed Pimpinella anisum
Grains of paradise Afromomum melegueta
Cassia bark Cinnamomum cassia
Sweet orange peel Citrus sinensis
Bitter orange peel Citrus aurantium
Cardamom seeds Elettaria cardamomum
Angelica root Archangelica officinalis
Lemon peel Citrus limon
Orris root Iris pallida
Callamus root Acorus calamus
Caraway seed Corum carvi
Adapted from Simpson (1966, 1977) and Clutton(1979).
As with vodka, great care should be taken in handling and bottling gin.
Unlike vodka, however, the problem is not picking up flavors from other products.
The risk is contamination of other products with gin. If it is not possible to use
a dedicated set of tanks and bottling equipment, everything coming in contact with
gin should be thoroughly washed before use on any other beverage.
